Customer Requirement:

• The milling groove and punching functions can be selected to control, which can be flexibly to process various projects.
• It is provided a parameterized operation interface for the customer; user can select different machining types by the milling groove modules.
• The grooving both left and right can be set different coordinate offset, which can be processed the arrays with different milling groove types or same one.
• It can be led out or led in the milling groove configurations, which is convenient to backup or administrate the configurations for the customers.
• To gain the buttons of current grooving offset parameters by one-touch click, and leave keying the parameters out.
• It is built-in the whist-slot, arc-slot, full-round-slot, spline-slot and sub-program module function.
• Lead-in the sub-program program, compatible with the lead-in program code, and perform the non-standard slot machining support.
• To support the updated system by one-touch click, so that the operation of the renewed system will be more convenient.
• It is supported with the machining file with Chinese name, which displays the numbers of the milling grooves of the configured files.
• It is supported the cutter-broken verification function, and it is avoid from reprogramming after the tool-change.
• It can be selected to stop based upon an appointment or circularly processing.

Troubleshooting:

• A set of GSK920D-C  CNC System .
• The dedicated version V3.0 software of GSK 920D-C CNC System milling groove machine.
• IO extension board with 2-circuit analogy value input or output, with the 16-input and 16-output terminals.
• Standard 24V power cabinet.

Application Effect:

• Configuration quantity of the system: one.

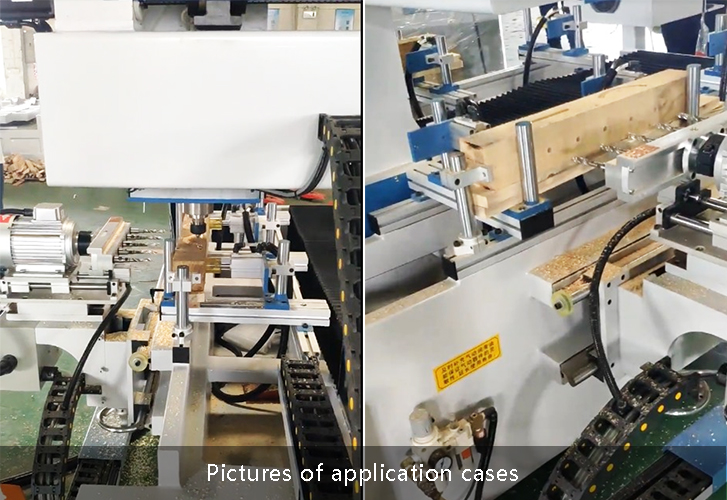

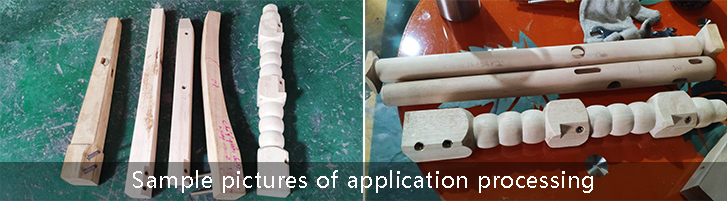

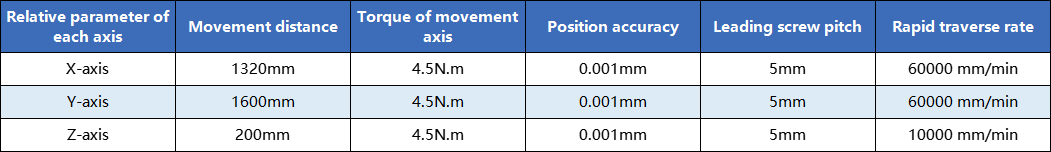

• Technology parameter.
• Three CNC axes are separately regarded as: X — Horizontal motion; Y — Vertical motion; Z — Deep feeding motion.

• Punching the left or right slot is controlled by air cylinder, which can be set to punch by different times and solve the troubles of the wood chip-removal.
• It can be achieved the configuration project that either the single milling groove without bunching or the milling with bunching only.
• Override on-line adjustment, control the machining speed of the system randomly
• It is supported the called machining file by subprogram and compatible with various “cam” software to produce the machining program format.
• It is supported the self-defined configuration operational buttons (it provides to perform the G code), and it is more simple of operation steps.
• Multiple milling groove types built-in; provide module extension.
• It supports the leading-in or leading-out configuration and the function by one-touch renewal.
• Punching project at both left and right slots (PLC program)
