Customer Requirement:

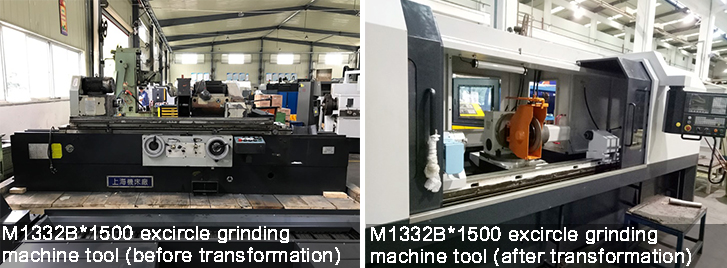

• Common grinding machine tool changes into CNC grinding and repair its guiding accuracy;
• Abnormal screw, variable distance and variable diameter machining; the helical angles of different components are inconsistence; the grinding wheel should be automatically waved;The overall defense of machine tool.

• Grinding the guiding again and plastic-pasting and shaving;
• X/Z axis change into a feed institution of roller screw;
• Mount the CNC rotary table to replace the original headstock of the machine tool;
• Dismantle the original grinding head of the machine tool; mount grinding electric spindle and CNC index head;
• Redesign and install the overall defense of the grinding machine tool;
• Configure with the GSK986 grinding CNC system.

• Restore the geometry accuracy of the machine tool;
• Three axes linkage that the C-axis leads the workpiece rotation; X and Z are achieved the cutting feed to carry out the processing of the abnormal screws of single-head, multi-head, variable distance and variable diameter, etc.;
• The grinding wheel spindle can be carried out the speed-stepless and automatically controlled the waving angle of the grinding wheel;
• Using the dedicated G command, macro program and PLC compound control to match the self-defined diagram and program interface that can be ensured the processing efficiency and precision.
